Taper & reference jig
April 10th, 2024
When you’re working with rough stock or plywood that doesn’t have a straight edge, it can be dangerous to run it against the table saw fence. This simple, reference edge jig solves that problem by giving you an edge that rides against the fence. The board with uneven faces gets clamped to the jig. It also allows you to cut cupped or twisted stock safely, cradling it as it passes over the blade.
As a bonus, this jig also works very well as a tapering jig, allowing you to create tapers with very minimal setup. It’s made to be easily built with basic materials and limited tools (you need only one power tool, the saw), making it extremely accessible.
ATTENTION: These plans are yours to use…they are offered as a gift from me to you. You have every right to use them to make this project for yourself, but please, do not sell or give these plans away as your own. I make absolutely no money off of these so I would appreciate those who view these plans to abide by basic copyright laws.
watch all steps in this video before starting
Please use the material and tool list below as a guide to finding the products locally.
Materials
- 3/4″ x 10″ x 24″ plywood
- 3/4″ x 3 1/2″ x 24″ hardwood
- Scraps for cauls (pine is fine)
- (2) 5/16″ knobs & 5/16″ x 2 1/2″ t-bolts
- (2) 3/8″ x 3/4″ x 10″ t-track (I used 8″ t-track)
- #6 1/2″ screws (for the t-tracks)
- 5/16″ hold down clamp kit (the one I used and recommend)
- Wood glue
- Double sided tape
- Packaging tape (for cauls)
Tools Needed/used
- Table saw
- Screw driver
- F-clamps
As an amazon associate I earn from qualifying purchases.
Step by step instructions

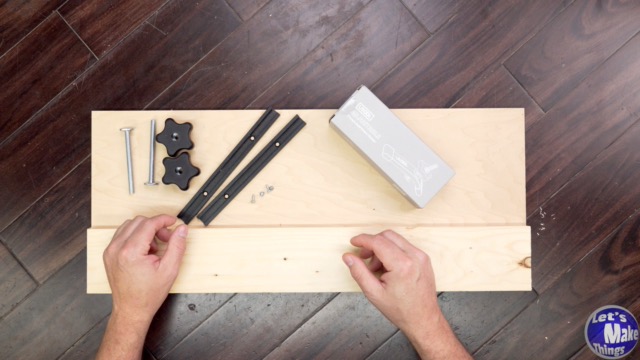

1. Materials
Click image to see this step on youtube

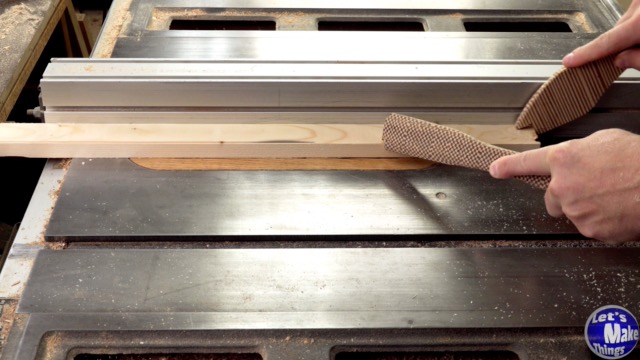

2. Arm (cutting pieces to size)
Click image to see this step on youtube
3. Cutting a t-bolt channel
Click image to see this step on youtube

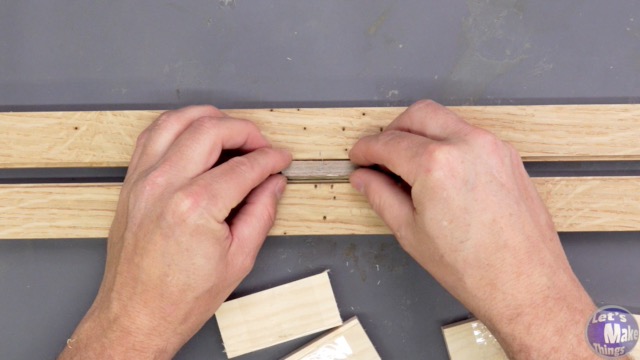

4. Gluing the arm
Click image to see this step on youtube

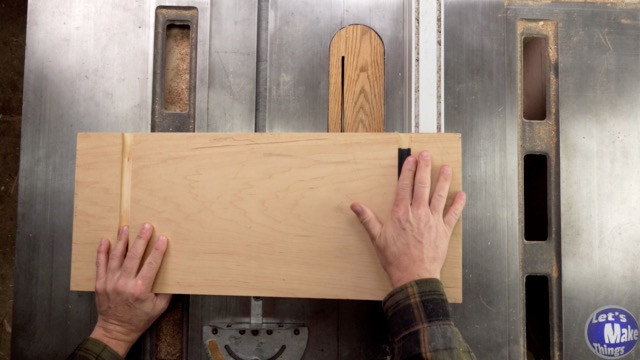

5. base t-track cutting
Click image to see this step on youtube

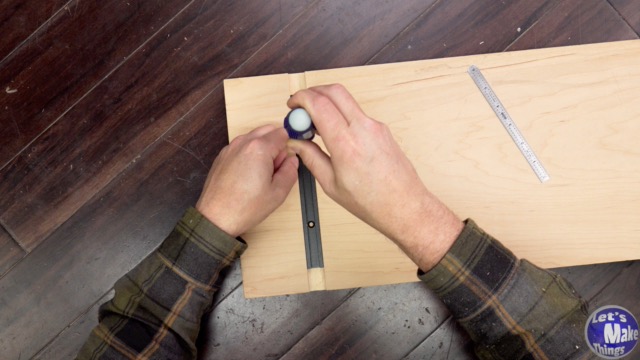

6.Install tracks
Click image to see this step on youtube

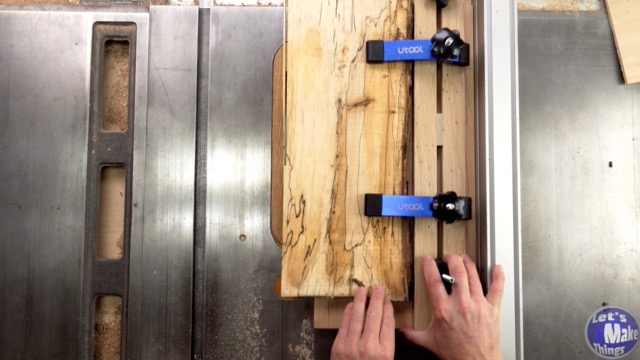

7.Reference example
Click image to see this step on youtube

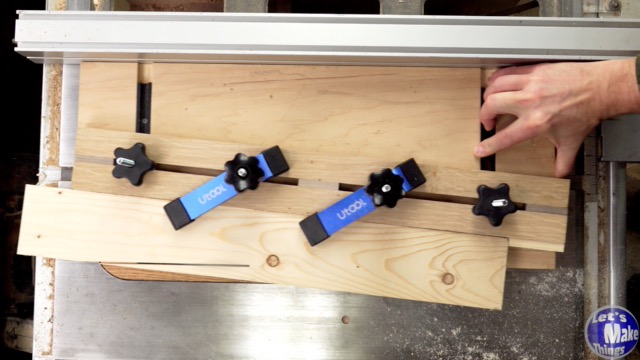

8.Taper example
Click image to see this step on youtube
